Mini-PC Gigabyte GB-BSRE-1505-BW

Mã sản phẩm : GIGA-GB-BSRE-1505-BW
Bảo Hành : 36 tháng
Tình trạng : Còn hàng
Giá niêm yết : 9,304,000 VNĐ
Giá khuyến mại : 8,604,000 VNĐ
(Giá trên chưa bao gồm thuế VAT)
Số lượng mua
Đánh giá sao
Thông số kỹ thuật Tổng quan về sản phẩm

» AMD® Ryzen™ Embedded R1505G Dual Cores Processor
» Integrated Graphics Processor – Radeon™ Vega 3 Graphics
» Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB
» 3 x HDMI ports, supporting a maximum resolution of 4096×2160@60Hz
» 2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2
» ALC 269 Audio Codec
» 2 x M.2 for SSD (1 x PCIe/SATA Mode, 1 x SATA Mode)
» 1 x Mini PCI slot
» Infineon TPM onboard*
» 4 x USB 2.0 (Front), 2 x USB 3.2 (Back)
» Headphone/microphone jack
» Support VESA Mount
» Onboard headers: 2 x RS232/422/485/5V/12V/RI COM ports; 2 x RS232 COM ports

Small Outside, Powerful Inside

The perfect choice for commercial workplaces.
Available now with the latest AMD’s Embedded Solution.



AMD Ryzen Embedded R1000 APU

The AMD Ryzen Embedded R1000 APU family offers ultra-high performance and class leading integration. The GB-BSRE-1505 BRIX PRO model sports the AMD Ryzen Embedded R1505G APU which combines “Zen” CPU and “Vega” GPU cores to achieve breakthrough SoC performance. Moreover, it supports up to three 4K display outputs. All these in a single device!

  • 4 PROCRSSING THREADS
  • 3 RADEON GRAPHICS COMPUTE UNITS
  • 3 4K DISPLAYS
  • 4K VIDEO DECODE /ENCODE
  • 10 YEARS PLANNED AVALABILITY

Performance

GB-BSRE-1505 features the AMD Ryzen Embedded R1505G APU. The R1505G is a 2-core/4-thread SoC that delivers an optimal balance of performance with up to 3x generational performance improvement per watt, and 4x better CPU and graphics performance per dollar than the competition.
Better: Multi-Threaded Performance with Cinebench nT: Ryzen Embedded R1505G SoC
Faster: Better GPU Performance with 3DMark 11P: Ryzen Embedded R1505G SoC

Triple-Display Support

The GB-BSRE-1505 BRIX PRO model supports up to 3 independent displays through its 3x HDMI ports. Combining this with 4K resolution on each output gives users the flexibility to configure their working environment without any limitation.

Connectivity

GB-BSRE-1505 offers a plethora of available connections. It provides multiple ports such as USB 3.2 ports, Wi-Fi connection, 3 x HDMI ports, legacy USB 2.0 ports and more. It is equipped with the most of the modern connectivity to be able to cover the needs of a business at all times.

* TPM module only available in certain countries, please check your local dealer for more details.

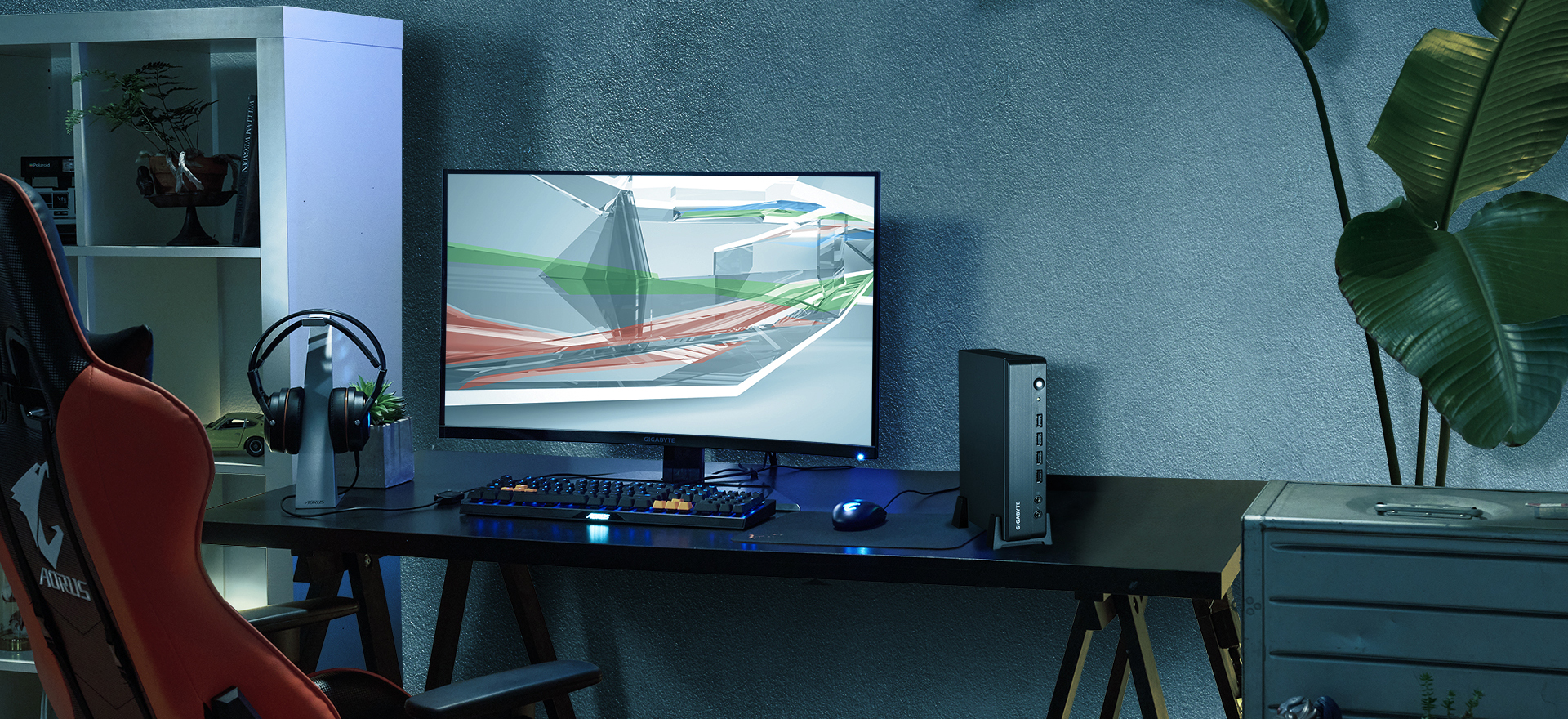

The Perfect Fit for Any Space and Application

The BRIX PRO models are following a modern design with metal and plastic parts. Its compact size makes it to fit perfectly in any environment. The GB-BSRE-1505 can be placed horizontally or vertically depending of the use. Furthermore, it features a VESA mount making it flexible to be attached to the back of the display. The GB-BSRE-1505 BRIX PRO model can serve the most demanding applications with its high processing power and the multiple display support capability.
Home PC
．Living room
．Bedroom
．Kitchen
．Study
Vertical Markets
．School
．University computer labs
．Libraries
．Hospital / Medical equipment
．Governmental
Graphics Powerhouse
．Play the latest 3D game
．Multimedia production
．Video editing
．3D design
Commercial
．Factory testing machine
．Bank ATM system
．Gaming equipment
．Vending machine
．Security system
Office
．Meeting room device
．Workstation
．Studio
．Freelance office space
Digital Life
．Shopping mall signboard
．Scoreboard system
．Split-flap display
．Indoor / Outdoor LED Display
The Perfect Compact Home PC
